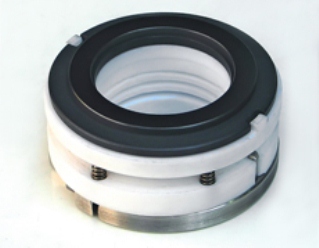

SSE  10 series mechanical seal is externally mounted PTFE bellow seals, which are available in various variety for different pumping media on varying parameters, they are designed for extremely corrosive fluid and in severe condition, capable of working in uneven concentrations of organic substance, acids, salt.

These seals are made of chemically inert Teflon, which is highly corrosive resistance material in all area of contact with pumping media. It has been designed hydraulically balance and flexible. They are available in integral and replaceable primary sealing faces, mounted outside with a bellow that overcome seal hang up due to accumulation of solid on the shaft.

Primary seal face Rotary GFT, CFT, Carbon, Silicon Carbide. Stationary Ceramic (AL2O3 = 99.5%), Silicon Carbide. Secondary seal PTFE Bellow. Hardware AISI 316, Alloy-20, Hastelloy-B/C, R-55, Titanium     Operating parameters Shaft parameter - d 20 to 100 mm Pressure - p up to 10 bar Temperature - t -45 to 125°C (228k to 398k) Velocity - v 10m/s     Applications Extremely corrosive media, Acids, Salts, Alkalis, Organic Compounds, Strong Oxidizing and reducing agents.
