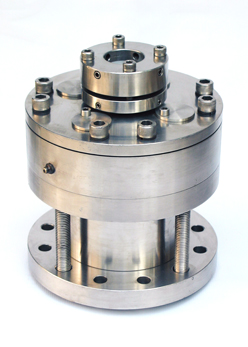

SSE 100 series are complete cartridge unit for top, bottom and side entry drive, that is clamped in design which prevents displacement of seal rings. They are simple, easy to install, rugged drive that withstands constant displacement and vibrations of mixer, & agitator vessel seals are designed for moderate to high pressure service, seal component, can be chose to match the pressure vessel.

The various varieties of agitator seal available as per requirements.

The agitator is designed with inboard and outboard primary and secondary sealing components selected as per the pumpage.

Primary seal face Rotary Carbon, TC, Silicon Carbide Stationary TC, Silicon Carbide, Cast Chrome Steel. Secondary seal Fluro carbon, Aflas, Silicon, Nitrile neoprene, Kalrez, Rubber, PTFE, GFT, FEP, TTV Hardware AISI 316, alloy -20, Morel, Hastelloy-B/C.     Operating parameters Shaft diameter - d 25 to 100 mm. Pressure - p 25 bar. Temperature - t -20 to 260°C (253k to 533k) Velocity - v 18 m/s.     Applications Corrosive Chemical, Pharmaceutical Industries, Food Industry, Petrochemical Refinery.
